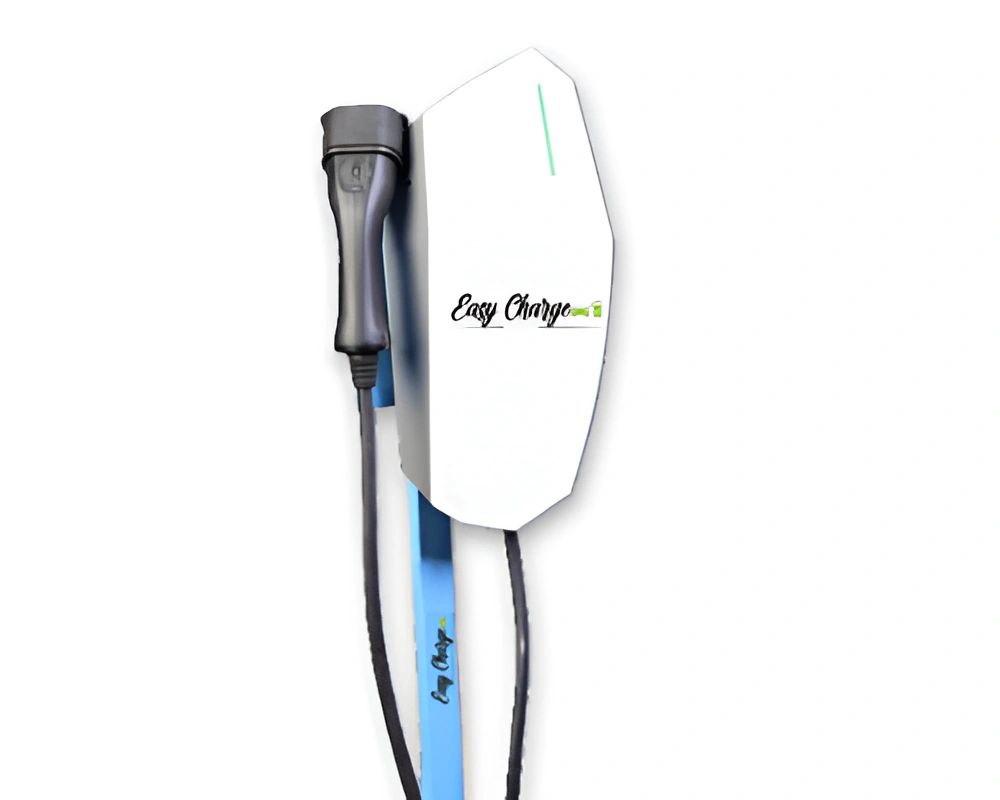

FLX - MAX 7.5 kWh
IEC62196 Type 2 Connector| Single Gun
4-wheeler / commercial EV
Power Input
Power Connection:
3 P + N + PE
Input Voltage:
180 - 275 V AC ± 10% Three-phase supply
Frequency | Power Factor:
50 Hz ± 10% | >0.98 (0.9993)
Power Output
Rated Power:
7.5 kW = 7.5 KW X 1(Single Phase)
Output Current :
32A
No. of Output:
1 (CCS1)
Connector/Plug/Gun Support:
IEC62196-2,Type
Safety Features
Over / Under Current, Over / Under Voltage, Surge Protection
Short Circuit Protection, Earth-Leakage, Ground Fault, Smoke detector
Temperature sensor, IP55 rated, Emergency Stop Button
Status Indication
Display:
LED (Error Indication, Presence Of Input Supply Indication, State Of Charge Process Indication For Gun)
Environment & Mechanical Design
Operating Temperature:
-20°C to 70°C
Storage Temperature:
-40°C to 70°C
Cooling:
Natural Cooling, Forced cooling for Power modules
Length of charging gun:
5m
Dimension:
450mm x 305mm x 130mm
Installation:
Ground mounted with Civil work
Mobile Communication:
WIFI | 2G
Software Update:
OTA Via OCPP
Connectivity:
BLE/WIFI/GSM
